EVGA launches new G1+ power supply units

by on12 February 2018

Improved G1 lineup with 10 year warranty

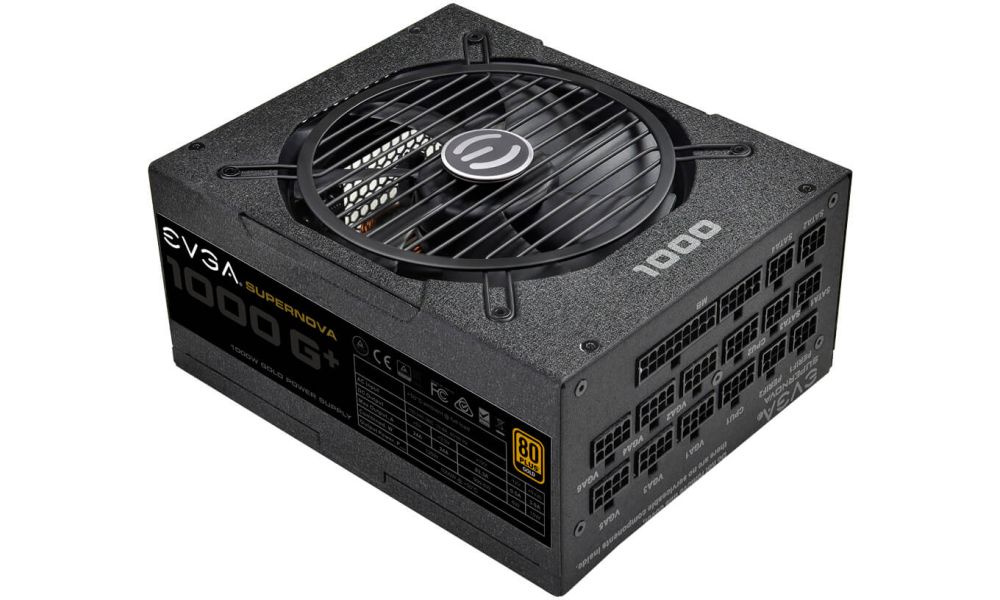

EVGA has launched its newest G1+ line of power supply units (PSUs) which bring plenty of improvements compared to the earlier available G1 lineup, including shorter size, better efficiency, and a quieter operation, all wrapped up in a fully-modular design with 80 PLUS Gold certification and a 10-year warranty.

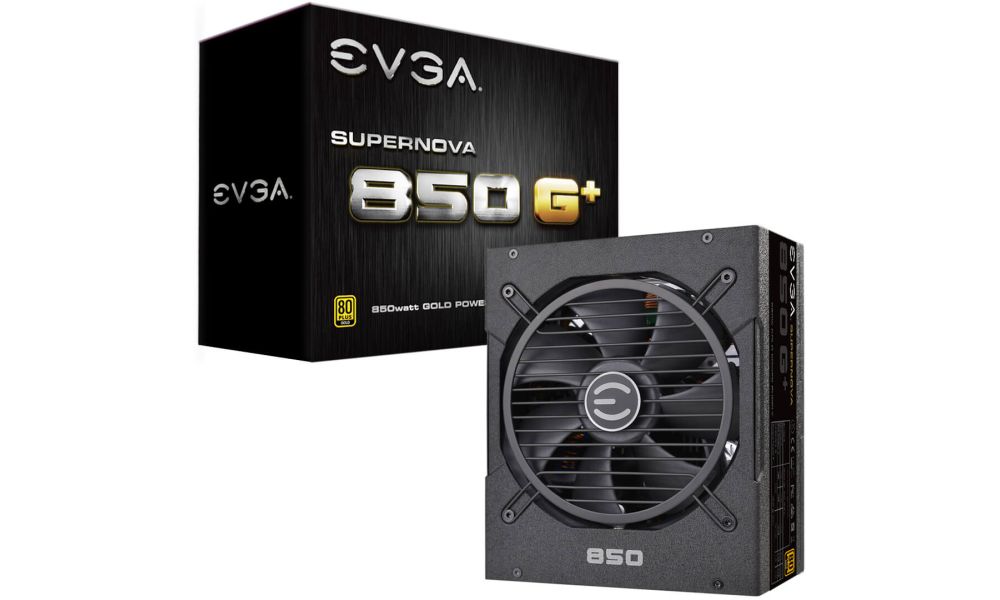

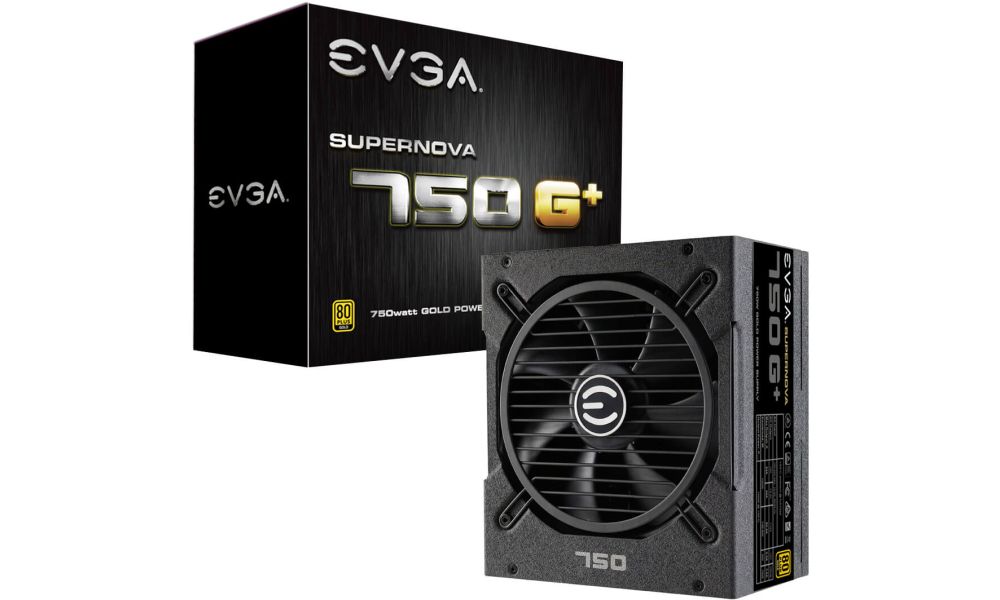

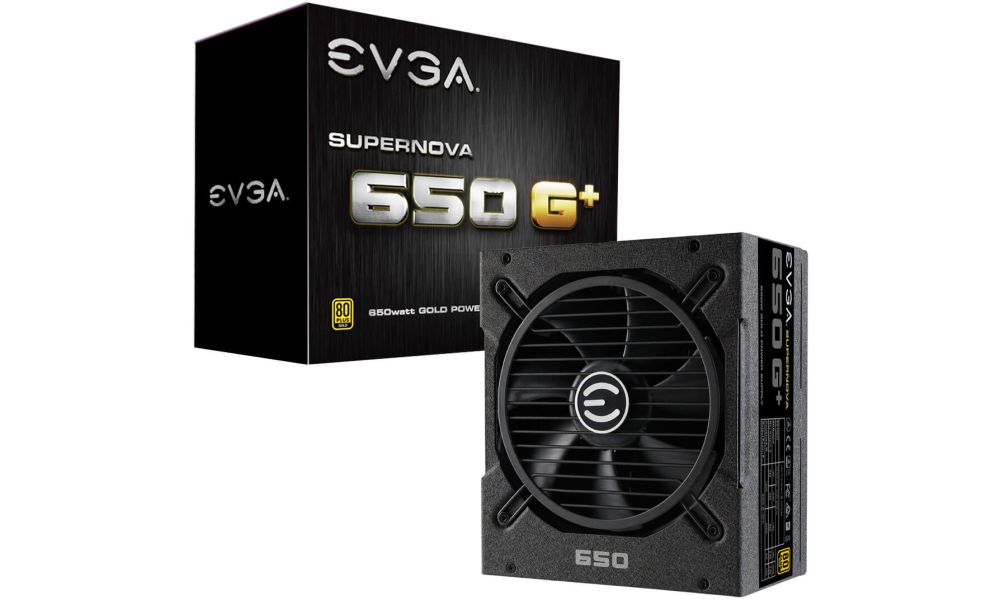

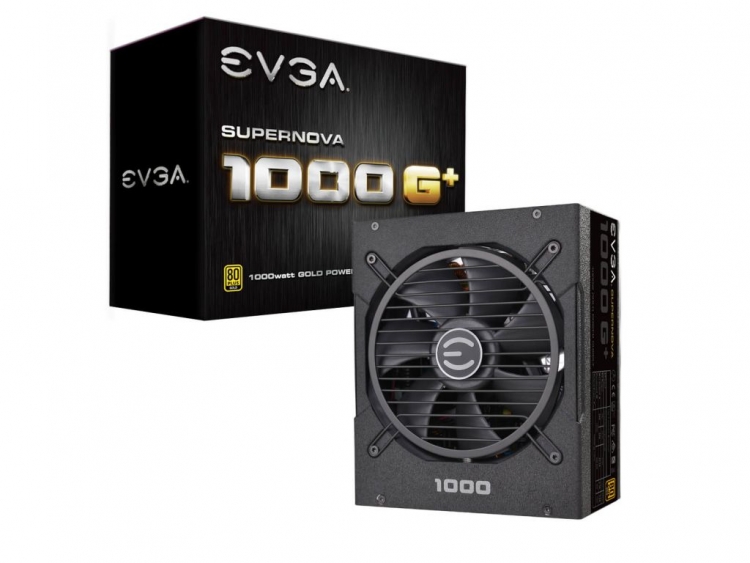

EVGA's original G1 has been the company's PSU workhorse, as well as its long-lasting and best-performing, power supply since its launch back in 2013, so it does not come as a surprise to see a big update for this lineup. The new SuperNOVA G1+ lineup will be available in 1000W, 850W, 750W, and 650W models, all featuring the same fully modular design and 80 PLUS Gold efficiency rating with 92 percent efficiency under a typical load (90 percent on 115V).

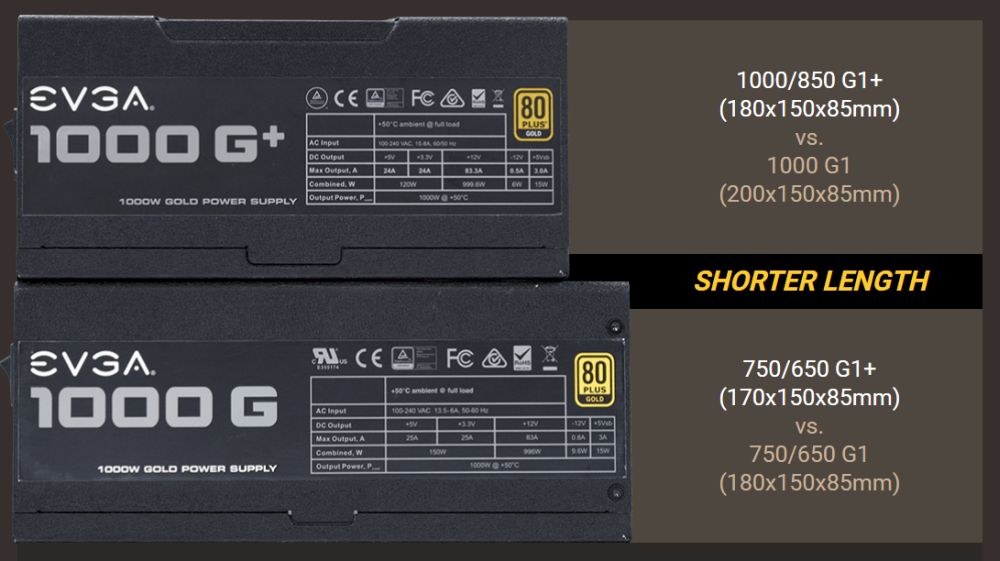

According to EVGA, the new G1+ PSU series has improved by using a cleaner internal layout, which provides increased airflow but, at the same time, comes with both a 10mm shorter length at 180mm for the 1000/850W model and 170mm for 750/650W model, and a better 135mm fluid dynamic bearing fan, which is up to 22 percent  quieter and can last longer compared to the 135mm dual-ball bearing fan on the G1 series.

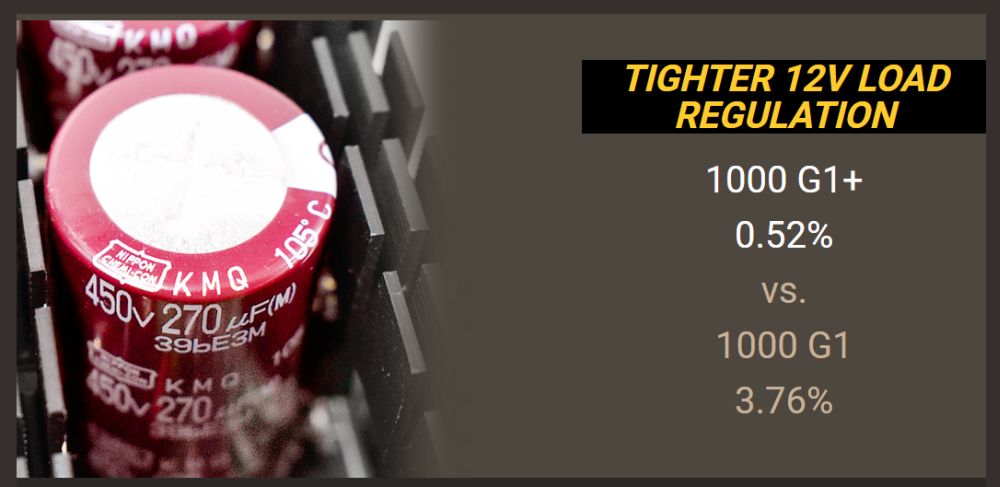

When it comes to actual components, the EVGA G1+ PSU series features a single +12V rail, 100 percent Japanese capacitors, a VR module, and two DC to DC modules, improving efficiency, 12V load regulation and providing more stable power, the company claims.

As expected, the new G1+ series also comes with all the usual protections,  including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) and is backed by a 10-year warranty.

While the entire EVGA G1+ series is already listed at EVGA's own webshop, only the 650W model is currently available at $109.99, while the 1000W, 850W and 750W models are likely to arrive soon with  prices set at $189.99, $149.99, and $119.99, respectively.

evga supernovag1plus 1

evga supernovag1plus 2

evga supernovag1plus 3

evga supernovag1plus 4

evga supernovag1plus 5

evga supernovag1plus 6
